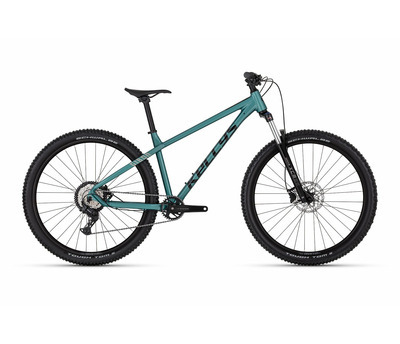

GIBON 10 EMERALD GREEN 29"
GIBON 10 EMERALD GREEN 29" 4158028

GIBON 10
EMERALD GREEN 29"

Search for a dealer

Frame set

frame frame
KELLYS Dynamic Trail 29", 1.5" tapered HT, internal routing
fork fork
SR SUNTOUR XCM32 LO DS (29") Boost, 120 mm, coil / Speed Lockout
frame size frame size
M / L

Drive

crankset crankset
SHIMANO Essa U2000-1 (32T) - length 175 mm (M - L)
rear derailleur rear derailleur
SHIMANO Essa U2000 (direct mount)
shifters shifters
SHIMANO Cues SL-U4010-9R Rapidfire Plus
speed speed
8
cassette sprocket cassette sprocket
SHIMANO CS-HG400-8 (11-45T)
chain chain
KMC Z8
b.b.parts b.b.parts
cartridge (124.5 mm)
pedals pedals
plastic platform

Brakes

brakes brakes
SHIMANO MT200 Hydraulic Disc
brake levers brake levers
SHIMANO BL-MT200
brake rotors brake rotors
SHIMANO RT10 Center Lock 180 mm front / 180 mm rear

Wheels

hubs hubs
SHIMANO QC300 Disc Center Lock (32 holes)
rims rims
KLS Draft 23 Disc 622x23 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Tough Tom 60-622 (29"x2.35) K-Guard, SBC

Cockpit

head parts head parts
1.5" semi-integrated
stem stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 5° / length 40 mm (M - L)
handlebar handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm (M - L)
grips grips
kraton
seat post seat post
KLS Active - diam 30.9 mm / length 400 mm (M - L)
saddle saddle
KLS Ascend

Geometria GIBON 10 EMERALD GREEN 29"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
